INFRASTRUCTURE
Acing manufacturing capacity, bracing to the increasing demand!
We have been serving robust, heavy fabrication machinery for 25+ years with our technologically advance and continuously evolving infrastructure. we have two manufacturing units spread in 43,000 sq. ft and 1,32,000 sq. ft. in Bangalore and Malur, respectively. We understand that quality is the outcome of precision. hence our infrastructure is equipped with our EOT Crane, Laser Cutting, Bending Machine, CNC Profile Cutting, HMT H-Boring Machine, CNC Press Brake, Painting Booth and Shot Blast for providing the best quality to our Customers.
With more than 2,00,000 sq.ft. of well-equpped infrastructure, we can deliver products just in time with the highest quality standards.
UNIT 1
UNIT 2
43000
SFT @ BANGALORE
132000
SFT @ MALUR
MANUFACTURING FACILITIES
EQUIPPED WITH
EOT CRANE
25NOS
25 Ton EOT Crane 02NO'S
20 Ton EOT Crane 01NO'S
10 Ton EOT Crane 06NO'S
5 Ton EOT Crane 10NO'S
JIB Cranes 10NO'S
2.5 Ton Fork Lift 01NO'S
LASER PROFILE CUTTING
01NOS
Make - DNE Bystronic: 6KW Laser machine
Size: 2500mm* 6500mm - Dual pallet Type
CNC PROFILE CUTTING
03NOS
Make - Hypertherm Plasma M/C 02NO'S 260 HPR with true Hole Technology Make - Messer oxy-fuel with Alpha Torch 04NO'S Size: 6500mm * 35000mm Make - Messer Omni Cut Oxy-fuel 01NO'S Size: 4100mm * 16000mm
CNC Press Brake
02NOS
650 Ton * 6500mm width 01No's
400 Ton * 4100mm width 01No's
100 Ton * 2500mm width 01No's
DAVI
01NOS
Make DAVI - CNC 4 Roll Plate Bending Machine Rolling Width - 3100mm

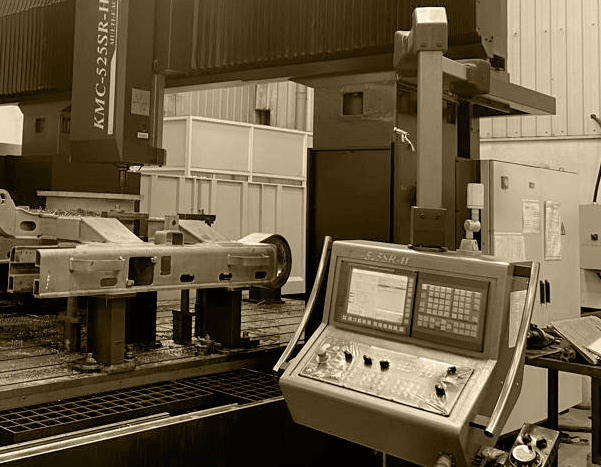

CNC 5 AXIS MACHINE
01NOS
Make: KAO MING - CNC 5 Face Vertical Machining Center X - 5500mm, Y - 2500mm, Z - 1850mm
CNC H Boring Machine
01NOS
*CNC H Boring make WMW CNC H Boring Machine with Rotary Table
X-3100mm, Y-1600mm, Z-1600mm
SHOT BLASTING CHAMBER
01NOS
Unit 1 - Size : 5.5 Mtr * 5Mtr * 06Mtr 01No's
Unit 2 - Size : 5.5 Mtr * 5Mtr * 12Mtr 01No's
WIELDING
NOS
Welding capabilities Both MIG AND TIG welding process as per the AWS
DORRIES
01NOS
Make: DORRIES - Vertical Turrent Lathe, Turning Diameter - 2200mm
PAINTING BOOTH
01NOS
Unit 1 - Size : 5.5 Mtr * 5Mtr * 06Mtr 01No's
Unit 2 - Size : 5.5 Mtr * 5Mtr * 12Mtr 01No's
Portable CMM Hexagon
01NOS
CMM Specification :
ARM : 6 Axis
ARM Moveable Length 2500 mm
Soft Ware : Poly works
OVER 1,75,000 SFT
OF WELL-EQUIPPED
INFRASTRUCTURE
